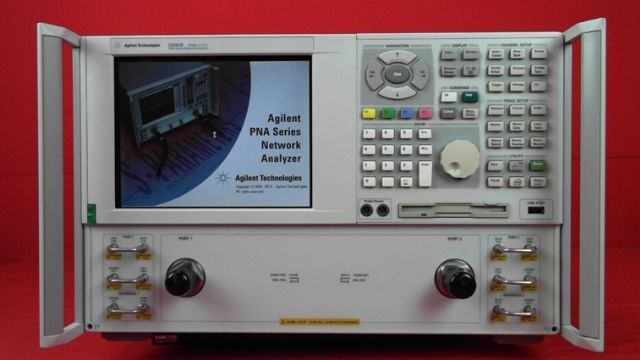

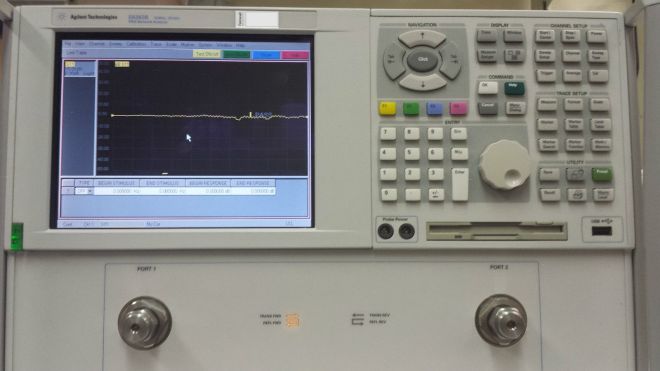

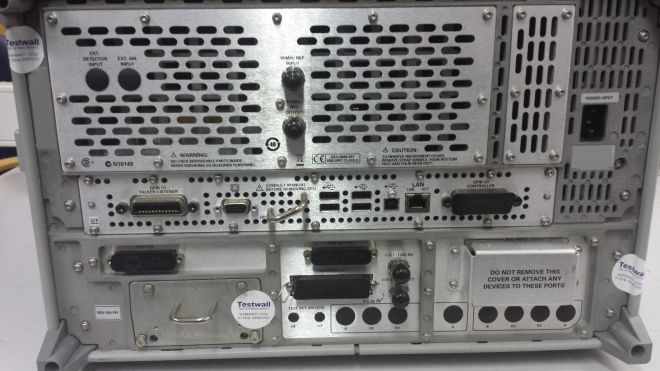

儀器名稱: E8362B PNA 系列網絡分析儀，10 MHz 至 20 GHz---徐經理 18912657535 儀器型號: Agilent E8362B PNA 系列網絡分析儀 儀器品牌: Agilent 儀器指標: 10 MHz 至 20 GHz
主要特性與技術指標
- 123 dB動態范圍和<0.006 dB跡線噪聲
- <26微秒/點的測量速度，32個通道，16,001點
- 支持TRL/LRM校準，提供晶圓、夾具、波導和天線測量
- 混頻器轉換損耗、回波損耗、隔離和絕對群延遲
- 放大器增益壓縮、諧波、IMD和脈沖射頻。
描述
通過可選的軟件和/或硬件進行通用網絡分析來定制您的應用――例如多端口、脈沖射頻等應用。
E8362B 10 MHz - 20 GHz
E8363B 10 MHz - 40 GHz
E8364B 10 MHz - 50 GHz
E8361A 10 MHz - 67 GHz
PNA-L N5230A 300 kHz to 6, 13.5, or 20 GHz
PNA-L N5230A 10 MHz to 20, 40, or 50 GHz
PNA-X N5242A 10 MHz to 26.5 GHz
PNA E8362B 10 MHz to 20 GHz
PNA E8363B 10 MHz to 40 GHz
PNA E8364B 10 MHz to 50 GHz
PNA E8361A 10 MHz to 67 GHz
PNA N5250A 10 MHz to 110 GHz
PNA Network Analyzers1
E8361A/62B/63B/64B, N5250A
PNA (highest performance series) PNA (highest performance series)
E836B 10 MHz to 0 GHz E8361A 10 MHz to 67 GHz
E8363B 10 MHz to 40 GHz N550A 10 MHz to 110 GHz
E8364B 10 MHz to 50 GHz
Options
To add options to a product, order the corresponding item number.
Description For E836B For E8363B For E8364B For E8361A For N550A Additional
system3 information
Test set
Option 014 ? Configurable test set E836B-014 E8363B-014 E8364B-014 E8361A-014 Included
Power configuration
Option UNL ? Extended power range E836B-UNL E8364B-UNL E8364B-UNL E8361A-UNL Included Only E8361A
and bias-tees requires 014
Option 016 ? Add receiver attenuators E836A-016 E8364A-016 E8364A-016 E8361A-016 E8361A-016 Requires UNL
(only E8361A also
requires 014)
Option H85 ? High-power configuration E836B-H85 E8363B-H85 E8364B-H85 Contact Contact Includes 014, 016,
Agilent Agilent UNL*4, 080, 081
Non-linear measurements
Option 080 ? Frequency offset E836A-080 E8364A-080 E8364A-080 E8361A-080 Included Requires 014
(E8361A only, 081
required if UNL is
also purchased)
Option 081 ? Reference receiver switch E836A-081 E8364A-081 E8364A-081 E8361A-081 Included Requires 014, 080
(only E8361A also
requires UNL)
Option 08 ? Scalar-calibrated E836B-08 E8363B-08 E8364B-08 E8361A-08 E8361A-085 Requires 014, 080
converter measurements
Option 083 ? Vector- and scalar-calibrated E836A-083 E8364A-083 E8364A-083 E8361A-083 E8361A-0835 Requires 014, 080,
converter measurements 081(only E8361A
also requires UNL)
Option 0846 ? Embedded LO Measurement E836B-084 E8363B-083 E8364B-083 E8361A-083 Requires Option 083
Pulse, antenna, mm-wave
Option H08 ? Pulsed-RF measurement E836B-H08 E8363B-H08 E8364B-H08 E8361A-H08 E8361A-H085 Requires 014, 080
capability
Option H11
? IF access (for antenna, E836B-H11 E8363B-H11 E8364B-H11 E8361A-H11 Included Requires 014, UNL,
pulsed-RF and mm-wave 080, and 081
measurements)
Measurement features
Option 010 ? Time-domain capability E836A-010 E8363A-010 E8364A-010 E8361A-010 E8361A-010 Options 550 and 551
Option 550 ? 4-port measurement application E836B-550 E8363B-550 E8364B-550 E8361A-550 require 014, and are
Option 551 ? N-port capabilities E836B-551 E8363B-551 E8364B-551 E8361A-551 not compatible with
N550A systems
Accessories
Option 1CM ? Rack mount kit for use E836A-1CM E8363A-1CM E8364A-1CM E8361A-1CM E8361A-1CM
without handles
Option 1CP ? Rack mount kit for use E836A-1CP E8363A-1CP E8364A-1CP E8361A-1CP E8361A-1CP
with handles
N4688A ? USB CD R/W drive N4688A N4688A N4688A N4688A N4688A
N4689A ? USB Hub N4689A N4689A N4689A N4689A N4689A
Calibration documentation
Option 1A7 ? ISO 1705 compliant E836B-1A7 E8363B-1A7 E8364B-1A7 E8361A-1A7 E8361A-1A7
calibration
Option UK6 ? Commercial calibration E836A-UK6 E8363A-UK6 E8364A-UK6 E8361A-UK6 E8361A-UK6
certificate with test data
Option A6J ? ANSI Z540 compliant E836B-A6J E8363B-A6J E8364B-A6J E8361A-A6J E8361A-A6J
calibration
Note: Item numbers may not correspond to product model number. For example, to order the time-domain option on the E836B,
the correct item number to order is E836A-010.
Warranty and service One, and three year warranty service plans are available at time of instrument purchase.
The N550A 110 GHz system carries a full one-year on-site warranty (where available).
Calibration Three year calibration plans are available at time of instrument purchase.
1. All models are not available in all countries.
. For more detailed information regarding the 110 GHz network analyzer system, refer to the Agilent Web site: www.agilent.com/find/pna
and download the N550A Technical Overview, literature number 5988-960EN.
3. The N550A 110 GHz system also includes an N560A millimeter-wave test set controller, 1.0 mm combiner assembly, interconnecting cables,
and installation and productivity assistance. See page 14 for more details.
4. UNL* does not include bias-tees. Only includes source attenuators.
5. Up to 67 GHz.
6. Requires firmware A.07.05 and above plus 1.1 GHz CPU board.
